客户需求分析

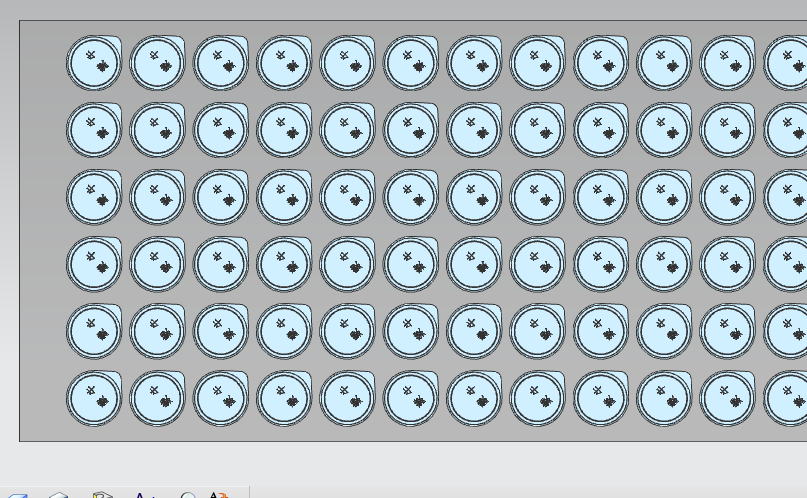

The array is on the conveyor belt, and during the specific disinfection process, we estimate that the disinfection is done through a thin film On the other side (with the sealing side of the tank) Lamp tube selection

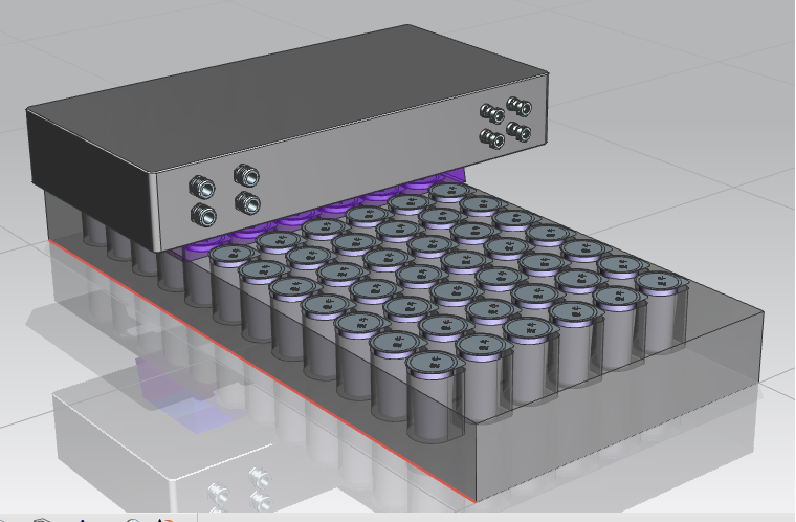

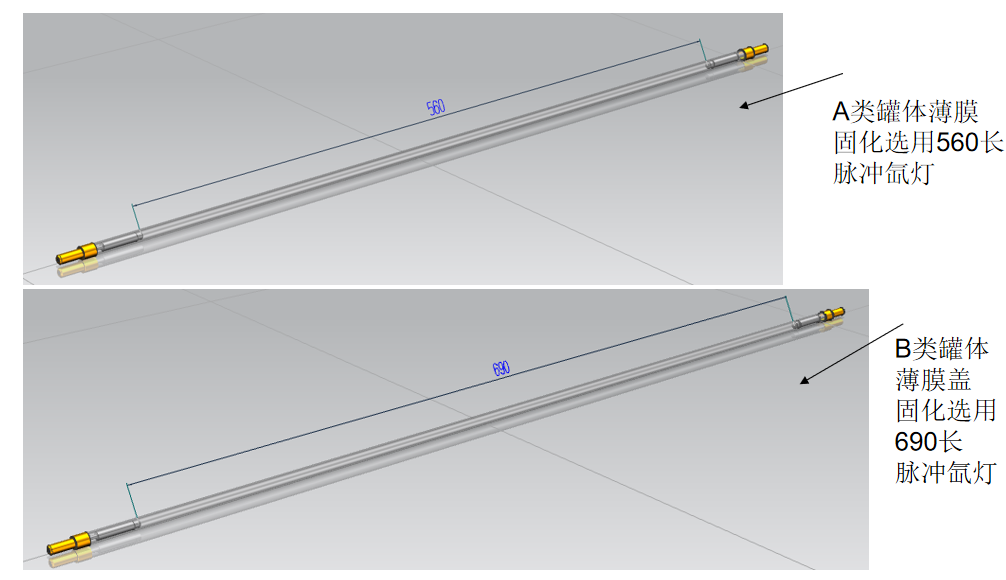

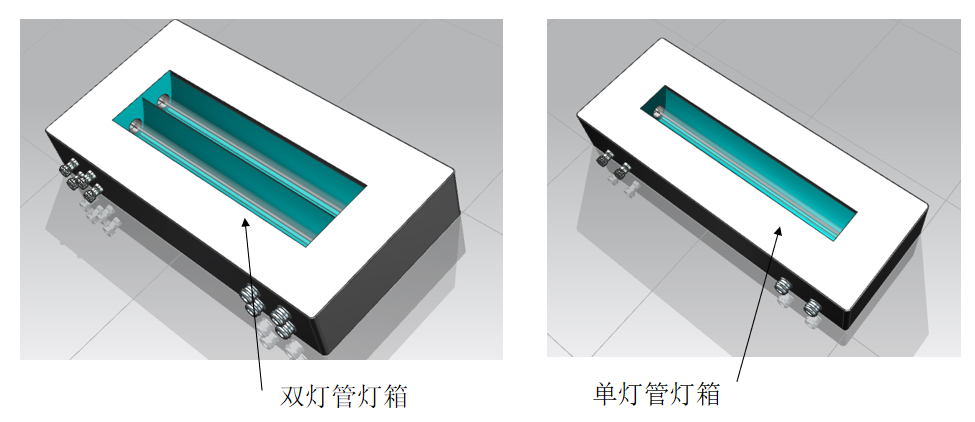

Pulse xenon lamp 560 tube parameters: (effective tube length: 560MM, maximum single pulse 400J, frequency 1-10Hz, maximum output power 4000W). Pulse xenon lamp 690 tube parameters: (effective tube length: 690MM, maximum single pulse 500J, frequency 1-10Hz, maximum output power 5000W). Design considerations for pulse xenon lamp systems   Similar to the previous tank disinfection Pulse xenon lamp box design: For working conditions with a step size of 170mm and 212mm, a dual tube lamp box disinfection system is selected. For working conditions with a step size of 85mm and 106mm, a single tube lightbox disinfection system is selected. Heat dissipation of pulse xenon lamp system

The lightbox system is also a fully liquid cooled heat dissipation system, with the lamp tube wrapped in a quartz sleeve and water flowing in the middle of the sleeve, taking away the heat from the lamp tube. The heat of the reflector is also carried away by the water flowing through the liquid cooled reflector profile. The single lamp system contains a liquid cooling circuit and requires an industrial chiller. The dual tube light box system contains two independent liquid cooling circuits and requires two industrial chillers. Overall schematic diagram of pulse xenon lamp

Summary of pulse strong xenon lamp scheme: For the working conditions of 85mm and 106mm steps (i.e. single row samples), only a single lamp tube lightbox system is needed. For the working conditions of 170mm and 212mm step (i.e. step) Double row samples require a dual lamp system. 2. Single lamp system configuration: one single lamp box, one industrial chiller, and one Drive control power module. The total power is divided into two types based on the length of the lamp tube: 5.5KW and 7KW. 3. Dual lamp system configuration: one dual lamp box, two industrial chillers, and one drive control power module. (The total power is divided into two types based on the length of the lamp tube: 11KW and 15KW.) 4. If the customer needs to solidify a film that is not the tank cover that was initially installed in the plan, a specific analysis should be conducted on a case by case basis. 5. Another point to be clear: For film disinfection, our company will consider adding a new type at the light outlet of the lightbox Filter glass filters out long wavelength visible and infrared light, making the light source even cooler. Make the film unaffected by light sources during use.
